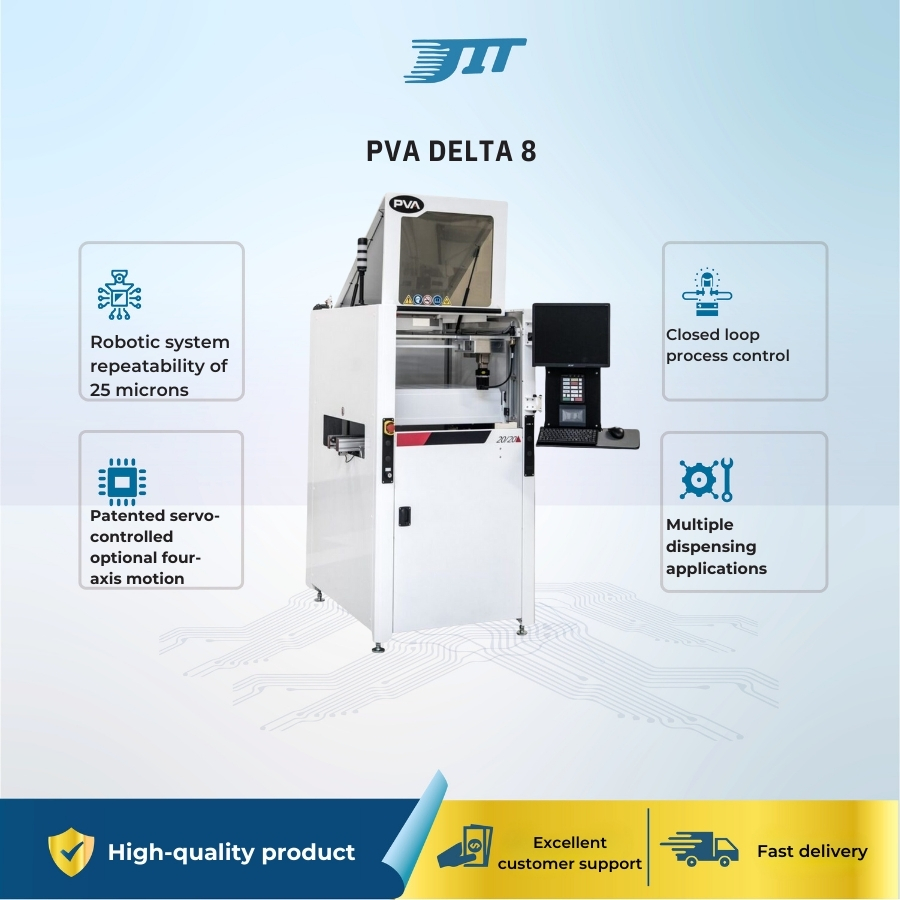

PVA DELTA 8​

PVA DELTA 8​

The Delta 8 is a flexible robotic conformal coating/dispensing system that is ideal for selective coating, potting, bead, and meter-mix dispensing applications. Conceptualized for maximum flexibility, the system can also be configured for custom assembly applications.  Maintaining the preferred features of previous workcells, the Delta 8 features a robust overhead three-axis motion platform suitable for inline or batch operations. Improved structural and gantry rigidity have been added for robustness and easier access.

Categories : ,

Description

The Delta 8 has many options and integrated features including:

  • Robotic system repeatability of 25 microns
  • Patented servo-controlled optional four-axis motion featuring valve tilt and rotate
  • Closed loop process control throughout gantry system
  • Multiple dispensing applications or materials in one cell
  • Onboard PC for unlimited program storage
  • Exclusive PathMaster® programming environment

Delta 8 SPECIFICATIONS

Gantry System Design Closed loop brushless DC servo motors with optical encoders and ball screw slides on all axes

Work Area 1 Valve / Tool: 621 mm x 595 mm x 100 mm (24.45″ x 23.43″ x 3.94″)

XYZ Repeatability ±25 microns (±0.001″)

Resolution 5 microns (0.0002″) Maximum Acceleration 0.5g

Footprint 973 mm x 1270.0 mm x 2350.9 mm (38.31″ x 50.0″ x 92.56″)

Programming Software PathMaster® software with offline image import and programming capability
