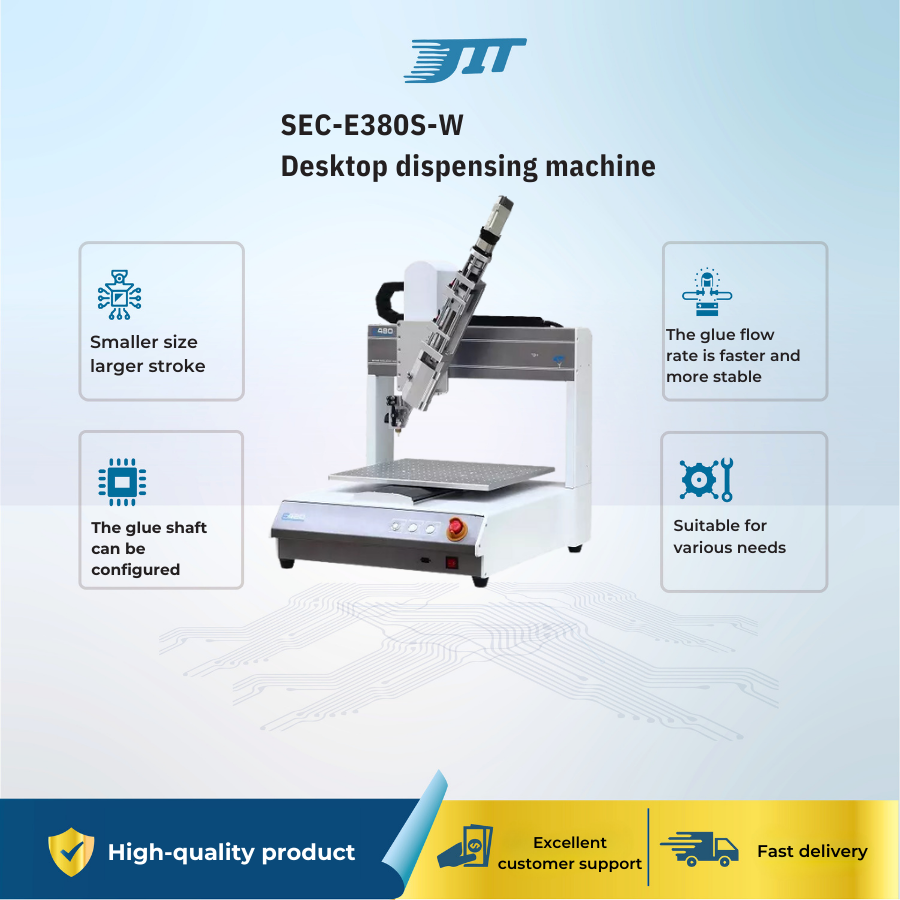

Features:
1. Smaller size larger stroke.
The same size, stroke increased by 20-25%, making it more compatible.Servo motor + grinding ball screw, higher precision, larger load, more extensive.
2. The glue flow rate is faster and more stable.
Use volumetric metering technology to push the glue out of the container at a uniform speed, ,ensuring that the thickness of the glue line is uniform.
3. The glue shaft can be configured according to the size of the glue package.
It supports 50ml, 250ml, 400ml, 490ml packages of two-component glue with different proportions.
4. Suitable for various needs in the dispensing industry.
Common glues such as UV glue,red glue,silver glue, A-B glue,COB black glue, conductive glue,heat dissipatition aluminum paste,instant glue,etc.
Specifications:
| Model | SEC-E380S-W | SEC-E480S-W | |
| Working range | 380(X)╳380(Y)╳100(Z)mm | 480(X)╳480(Y)╳100(Z)mm | |
| Y/Z max payload | 20kg/10kg | ||
| Max travel speed | 400mm/sec(XY)/200mm/sec(Z) | ||
| Transfer method | Servo motor, lead screw, precision rail | ||
| Dosing method | Servo, lead screw | ||
| Dispensing method | SMC needle valve | ||
| XYZ position accuracy | ±0.02mm | ||
| Resolution | 0.01mm | ||
| Memory storage | 999 program setups (each program can store up to 65535 spots.) | ||
| Operating method | LCD, teach pendant | ||
| Transport system | Servo motor | ||
| Movement method | 4 axis spot to spot, continue line, arc. | ||
| I/O | 1 input, 4 output (support expansion) | ||
| Power supply | AC220V 50/60Hz 0.9kw | ||
| Working environment | Temperature 0-40%, humidity 20-90% | ||
| Machine weight | About 80kg | About 95kg | |
| Machine dimension | 520*583*645 mm | 620*683*645 mm | |
